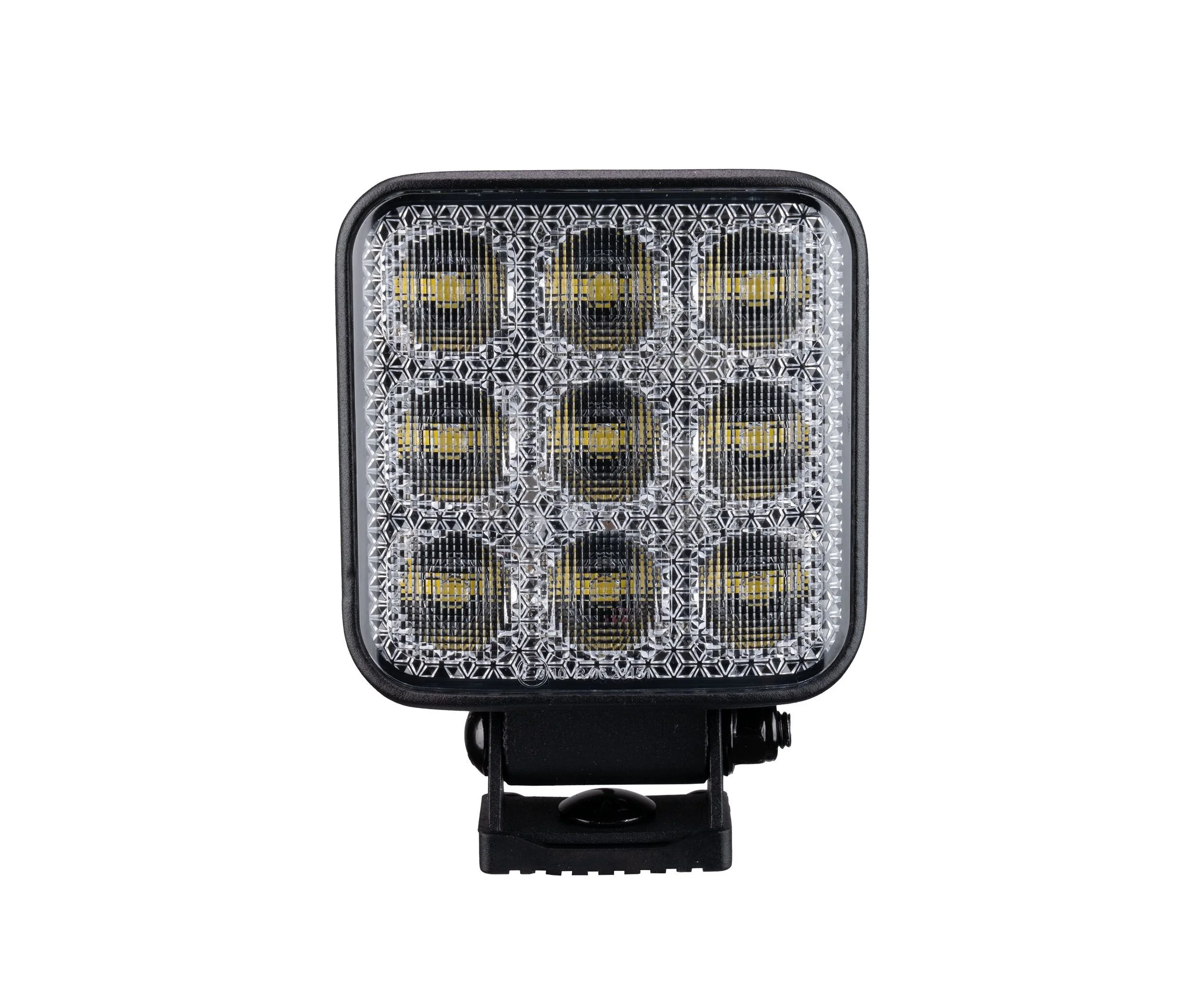

LEDSON Lumina SQ9 40W Work Light – Long-Range Flood Beam, Reverse & ADR Approved
The LEDSON Lumina SQ9 delivers powerful and reliable lighting with a 40W output designed for demanding worksite and reversing applications. It features a 90° wide flood beam providing excellent coverage with an impressive range of 47 meters at 1 lux and 94 meters at 0.25 lux.
Approved as a reverse light (ECE R148, R23) and ADR compliant, the Lumina SQ9 ensures legal use on commercial vehicles. Its neutral white 5000K light produced by 12 Osram LEDs offers bright, natural illumination with a theoretical output of 2929 lumens and an actual output of 1758 lumens.
Built tough with an aluminum housing, polycarbonate lens, and a stainless steel mounting bracket, the light is rated IP67 and IP69K for water and dust resistance. It complies with CISPR25 class 3 and ECE R10 EMC standards for electromagnetic compatibility. A built-in temperature control system protects the light from overheating.
Compatible with 10-30V systems, it draws 1.78A at 12V and 0.84A at 24V, making it suitable for a wide range of vehicles and equipment.
The LEDSON Lumina SQ9 delivers powerful and reliable lighting with a 40W output designed for demanding worksite and reversing applications. It features a 90° wide flood beam providing excellent coverage with an impressive range of 47 meters at 1 lux and 94 meters at 0.25 lux.
Approved as a reverse light (ECE R148, R23) and ADR compliant, the Lumina SQ9 ensures legal use on commercial vehicles. Its neutral white 5000K light produced by 12 Osram LEDs offers bright, natural illumination with a theoretical output of 2929 lumens and an actual output of 1758 lumens.
Built tough with an aluminum housing, polycarbonate lens, and a stainless steel mounting bracket, the light is rated IP67 and IP69K for water and dust resistance. It complies with CISPR25 class 3 and ECE R10 EMC standards for electromagnetic compatibility. A built-in temperature control system protects the light from overheating.
Compatible with 10-30V systems, it draws 1.78A at 12V and 0.84A at 24V, making it suitable for a wide range of vehicles and equipment.
The LEDSON Lumina SQ9 delivers powerful and reliable lighting with a 40W output designed for demanding worksite and reversing applications. It features a 90° wide flood beam providing excellent coverage with an impressive range of 47 meters at 1 lux and 94 meters at 0.25 lux.
Approved as a reverse light (ECE R148, R23) and ADR compliant, the Lumina SQ9 ensures legal use on commercial vehicles. Its neutral white 5000K light produced by 12 Osram LEDs offers bright, natural illumination with a theoretical output of 2929 lumens and an actual output of 1758 lumens.
Built tough with an aluminum housing, polycarbonate lens, and a stainless steel mounting bracket, the light is rated IP67 and IP69K for water and dust resistance. It complies with CISPR25 class 3 and ECE R10 EMC standards for electromagnetic compatibility. A built-in temperature control system protects the light from overheating.
Compatible with 10-30V systems, it draws 1.78A at 12V and 0.84A at 24V, making it suitable for a wide range of vehicles and equipment.
🔧 Key Features:
💡 40W LED power with 12 Osram LEDs (18W actual)
🌈 90° wide flood beam with 47m (1 lux) range
✅ ECE R148 (R23) reverse light & ADR approved
⚡ Neutral white 5000K light for clear visibility
🌧️ IP67 and IP69K rated for dust and water resistance
📶 CISPR25 class 3, ECE R10 EMC compliant
🌡️ Temperature control system prevents overheating
🧰 Aluminum housing & polycarbonate lens with stainless steel bracket
🔌 Voltage range 10-30V, 1.78A @12V, 0.84A @24V
✅ Ideal For:
Worksite and utility lighting
Vehicle reversing light applications
Commercial trucks and heavy machinery
Environments needing durable, high-performance lighting
